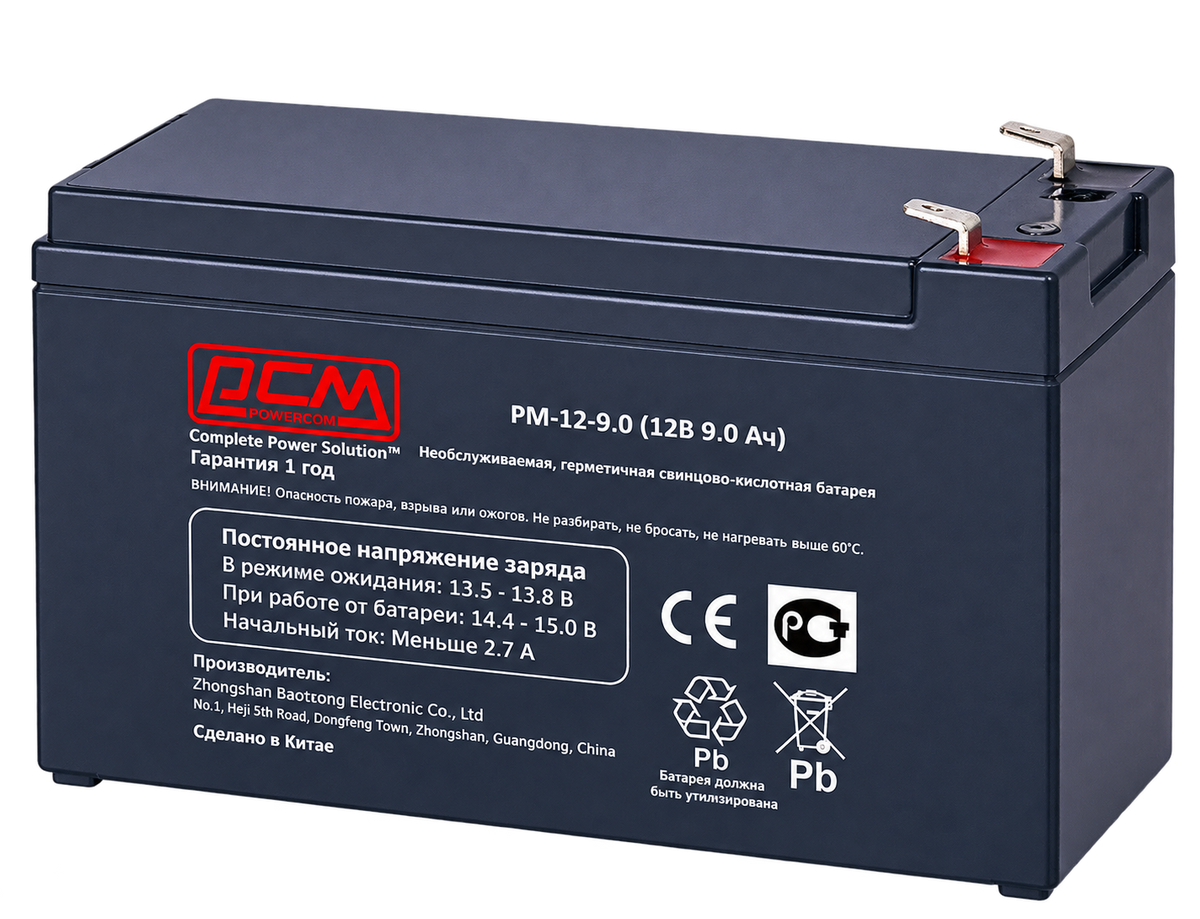

Battery-PM-12-9

$49.00 AUD inc. GST

Flexible Installation and Maintenance-Free Lead-Acid Battery
Under 25℃, the Designed Floating life is up to 3~5 years
Under Normal Circumstances, the Battery Will Remain Sealed; When the Internal Pressure Is High, It Will Reduce the Pressure
International Standard Classification IEC 61056 and GB/T 19639
Applied to Electronic Equipment such as Telecommunication, Medical Treatment, Lighting, etc.

BATTERY

Model

PM-12-9.0 (12V 9.0Ah)

CAPACITY

Nominal Capacity

9.0Ah

VOLTAGE & CURRENT

Rated Voltage

12V

Charge Voltage (25°C)

Type

Charge Voltage

Temp. Coefficient

Float

2.25~2.30V/cell

-3mV/single cell/°C

Equalization

2.35~2.40V/cell

-4mV/single cell/°C

Cycle

2.40~2.50V/cell

-5mV/single cell/°C

Max. Discharge Current

112.5A(5s)

Max.Charging Current(25℃)

2.7A

Internal Resistance(25℃)

Approx 23mΩ

TEMPERATURE

Operating Temp. Range

Discharge : -20~55℃(-4~131℉) Charge : 0~40℃(32~104℉) Storage : -15~50℃(5~122℉)

Nominal Operating Temp. Range

25±3℃ (77±5℉)

Effect of temp. to Capacity

40℃(104℉) : 103% 25℃(77℉) : 100% 0℃(32℉) : 86%

Self Discharge

<= 3%/month @ 25℃

PHYSICAL

Dimension

Length : 151±2mm (5.94 inches) Width : 65±1mm (2.56 inches) Container Height : 93.5±1mm (3.68 inches) Total Height : 99.5±1mm (3.92 inches)

Approx Weight

2.35kg (5.18 lbs)

Container Material

ABS

Terminal
