Powercom UPS Australia
DIN Rail UPS 500VA MSW
$799.00
AUD
inc. GST
- OFF-Line UPS for Specific Demand
- Din Rail Mounting Available
- Remote Power on/off Control Available
- Cold Start Function Capability
- Lightweight & Compact Size for Easy Installation
- Surge, Short Circuit, Overload Protections
- SNMP, Modbus, Dry Contact Relay Support
- DRU - 500
UPS
Model
DRU-500
Capacity VA
500 VA
Capacity (Watts)
300 W
Form
Din Rail Mounting Type
INPUT
Voltage
100 / 110 / 120 or 220 / 230 / 240 Vac
Voltage Range
85 - 138 or 165 - 276 Vac
Frequency Range
50 / 60 Hz (Auto Sensing)
OUTPUT
Waveform
Simulated Sine Wave
Voltage
100 / 110 / 120 or 220 / 230 / 240 Vac
Frequency
50 / 60 Hz ± 0.3 Hz
Transfer Time
2 - 4 ms(Typical)
BATTERY
Battery Capacity
12V / 7.2Ah * 1
Sealed, Maintenance Free
Yes
Recharge Time
8 hr to 90%
MANAGEMENT
Indicator
LED Panel
Communication Port
RS232
Communication

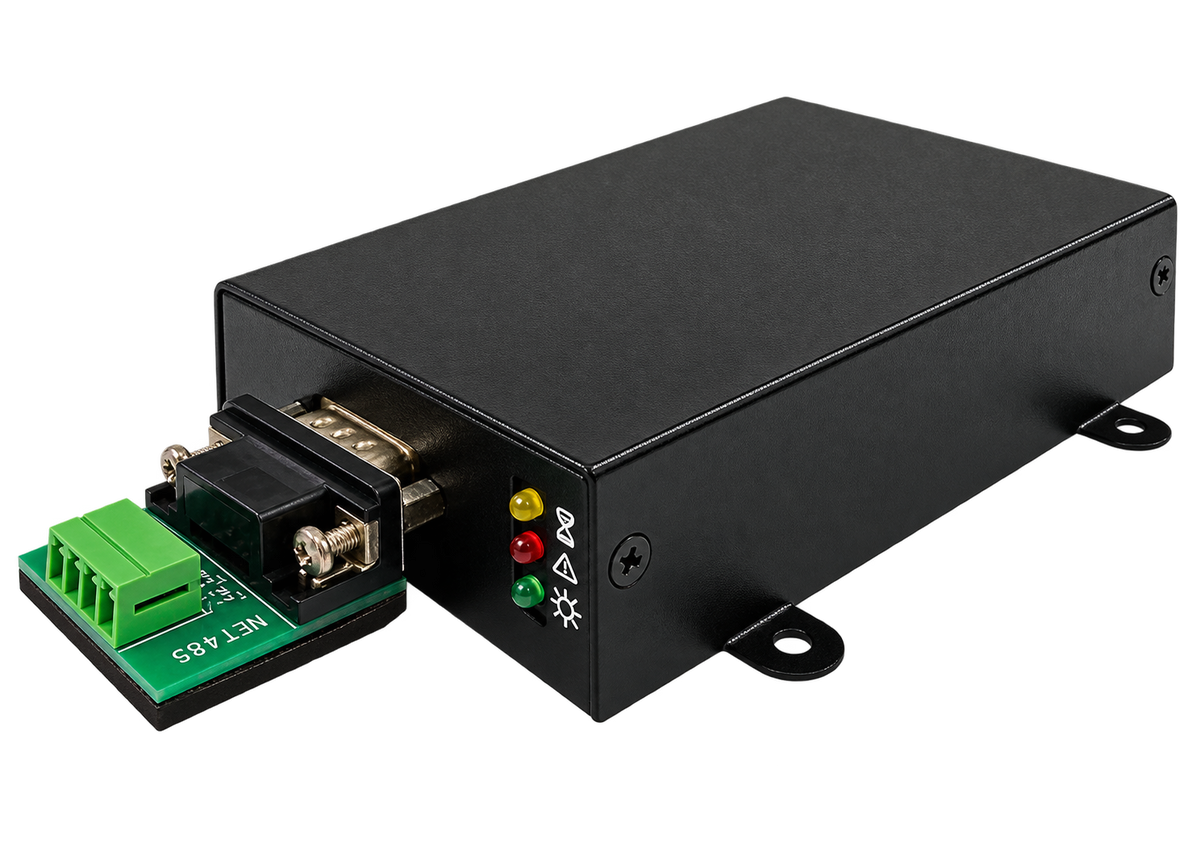

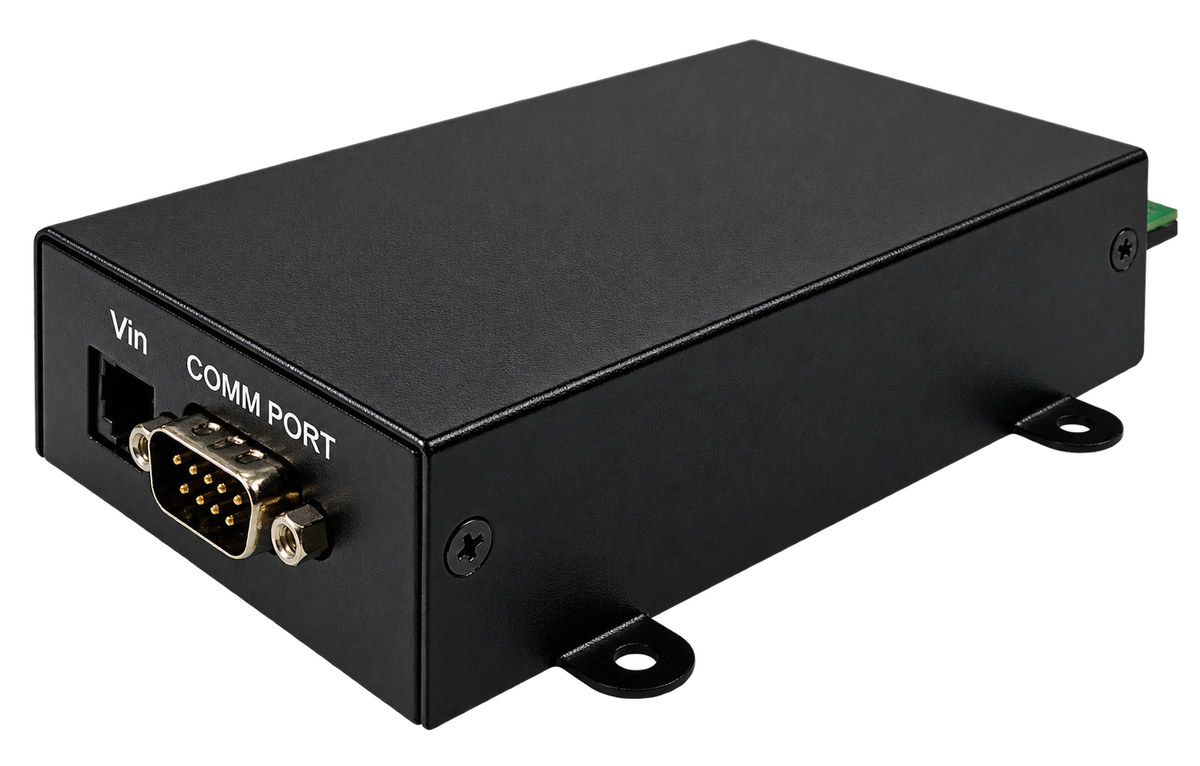

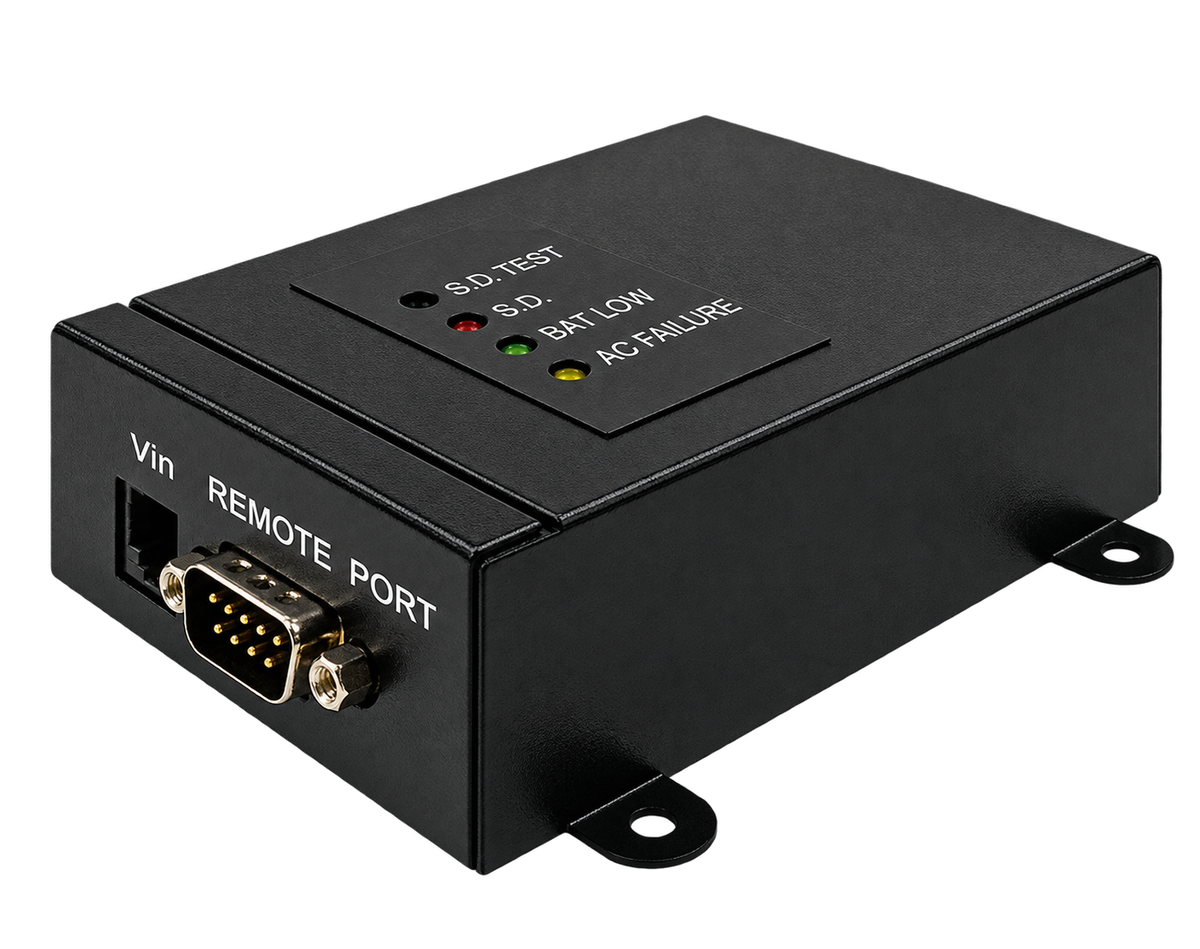

Option : SNMP card / Modbus card / Dry Contact Relay Box
ALARM
Overload / Fault
Continuous Beeping
Battery Mode
Beep every 4 seconds
Low Battery
Beep every 0.5 seconds
ENVIRONMENT
Operating Humidity
0~90% RH at 0~40°C (Non-condensing)
Audible Noise
Less than 40 dB
PHYSICAL
Dimension (W×D×H)(mm)
282 x 110 x 124
Weight (kgs)
4.3
Shipping Dimensions (mm)
381 x 243 x 231
Shipping Weight (kgs)
5.1
